EcoFlow PowerHeat air-water heat pump 9 | 20kW

ECOFLOW EUROPE S.R.O. EcoFlow PowerHeat air - water - heat pump 9 | 20 kW – – Figure 2

ECOFLOW EUROPE S.R.O. EcoFlow PowerHeat air - water - heat pump 9 | 20 kW – – Figure 3

Sold Out

EcoFlow PowerHeat air-water heat pump 9 | 20kW

€5.419,00

Tax included.Shipping calculated at checkout.

Out of stock

Artikelnummer: 900997-01

Variantenauswahl:

Performance: 9kW

9kW
20kW

Product variants

Estimated Shipping Widget will be displayed here!

Pickup currently unavailable at Zentrale Pfedelbach

Highlights:

Weitere Informationen →

Powered by solar energy
The PowerHeat air-water heat pump requires electricity to transport thermal energy from the ambient air into your home.
By integrating with PowerOcean, this electricity can be generated via the solar system. This makes you less dependent on energy suppliers and further reduces your energy costs.

With the PowerOcean series
In combination with our PowerOcean solar storage systems, a significant portion of the electricity required for heat pumps can be generated from solar energy. This increases independence from energy suppliers and further reduces energy costs.
Integration into the EcoFlow Smart Energy ecosystem for private households can be planned flexibly - whether from the start or as a subsequent addition.
This means you can choose to heat with clean energy at any time.

Heat smart, control smart
With the EcoFlow APP you get a complete overview of the energy flows in your household in real time, both in terms of heating and electricity consumption.

Clean heat with high efficiency
PowerHeat uses the environmentally friendly refrigerant R290 with a GWP (Global Warming Potential) of less than 20.
As a pure gas, R290 does not contain any greenhouse gas-relevant chemicals and is therefore very environmentally friendly. In addition, it is extremely energy efficient. Thanks to the energy efficiency class
ErP A++++, PowerHeat optimally meets the desire for minimal energy costs.

Timed whisper mode
PowerHeat ensures a quiet operating environment and offers a timed whisper mode at the touch of a button.

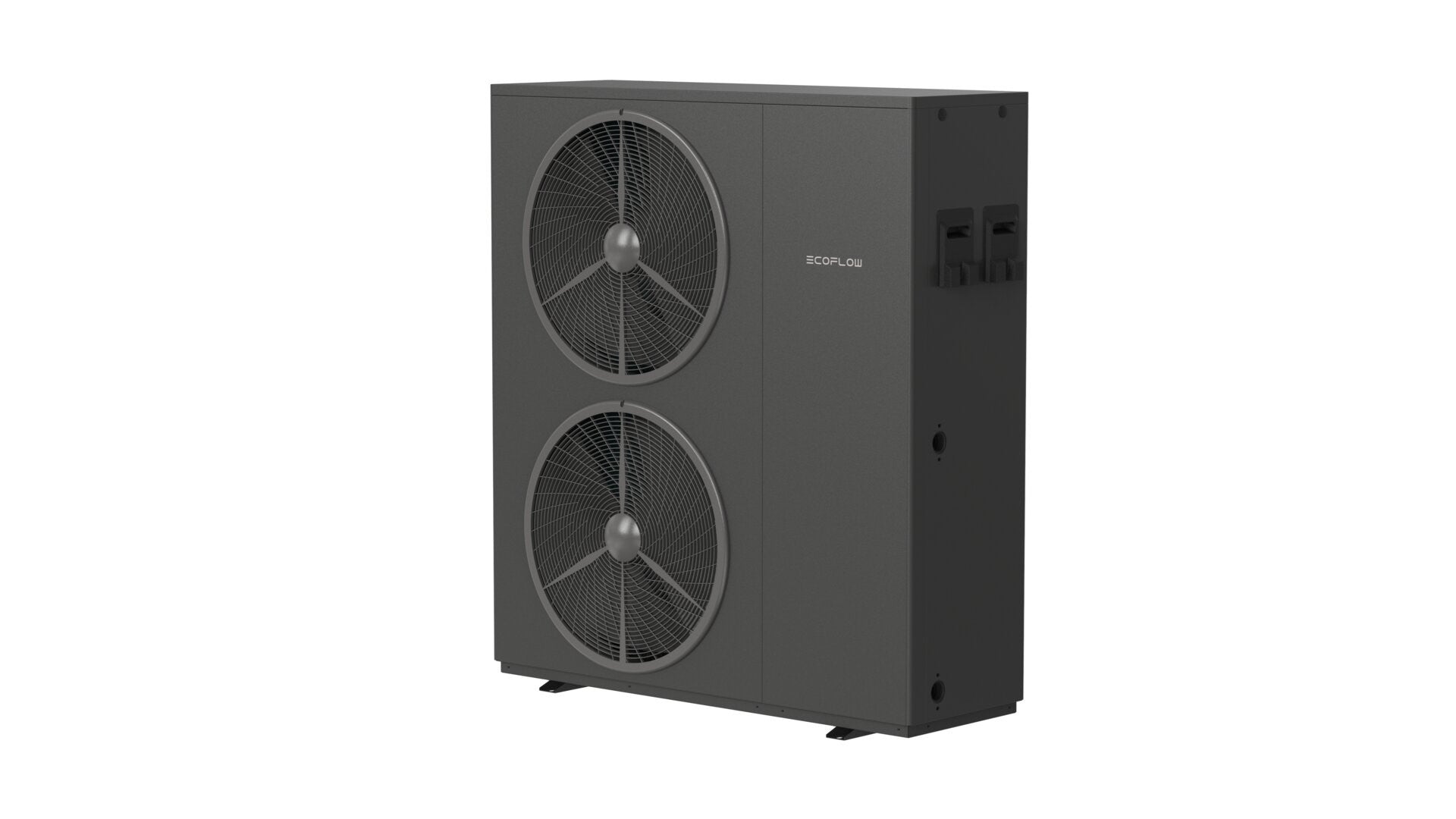

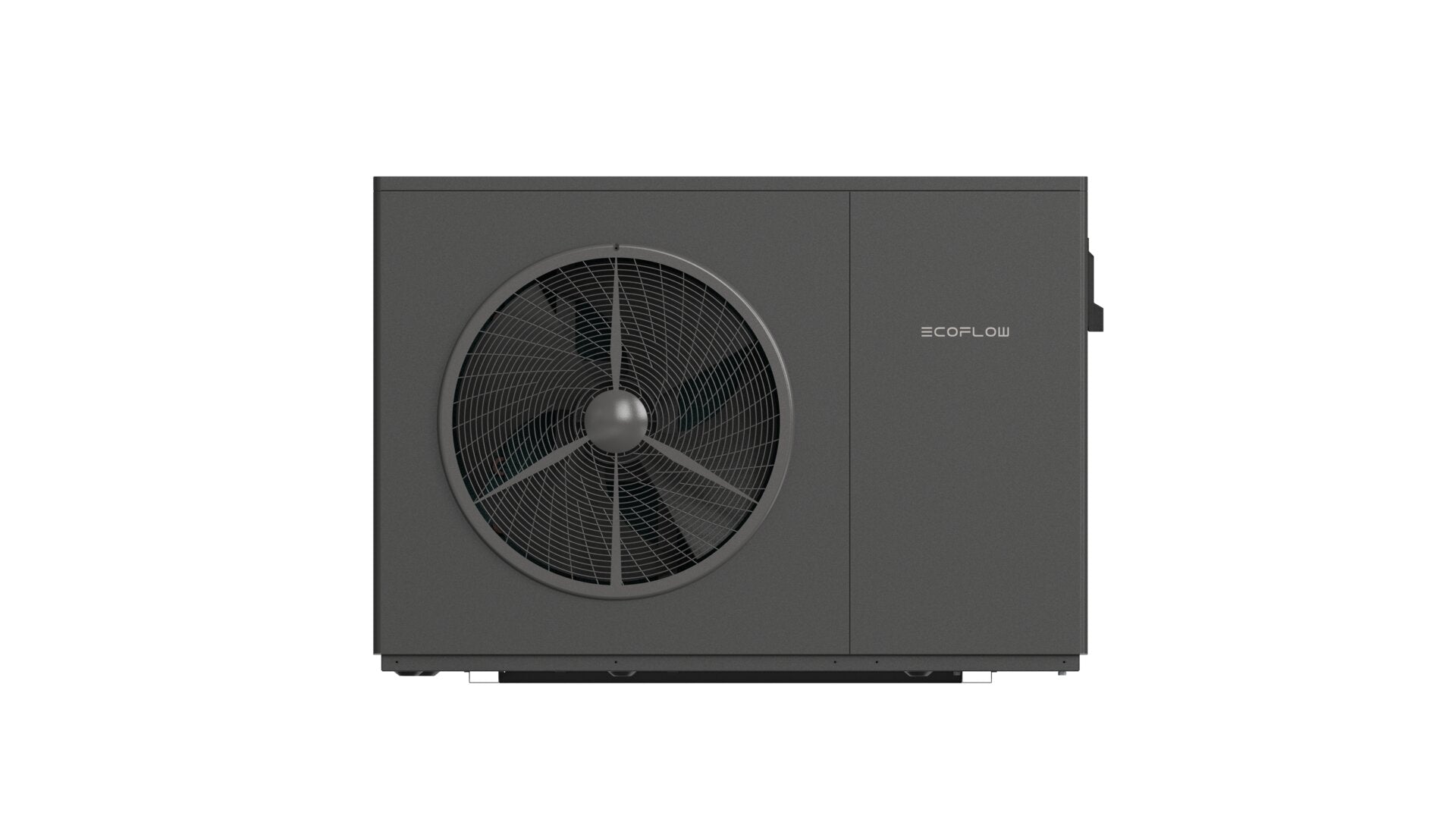

Available in 9 kW and 20 kW
PowerHeat is available in two variants, each supporting a 1-phase and a 3-phase connection.

Produktinformationen:

Technische Details

Model EF AD-P1-9K0-S1 - 9 kW
[Space Heater] Ambient Temp. (DB/WB): 7 °C/6 °C, water temp. (Inlet/Outlet) 30°C/35°C
Heating output (kW) 3.50–8.81
Input power (kW) 0.58-1.89
Heater current input range (A) 2.65-8.18
COP 6.00-4.65

[Space Heater] Ambient Temp. (DB/WB): 7 °C/6 °C, water temp. (Inlet/Outlet) 50°C/55°C
Heating output (kW) 3.15–7.98
Input power (kW) 0.68-2.55
Heating current input range (A) 3.11-11.00
COP 4.63-3.13

[Room Cooling] Ambient Temp. (DB/WB): 35 °C/–, water temp. (Inlet/Outlet) 12°C/7°C
Cooling capacity (kW) 1.53-5.96
Input power (kW) 0.33-2.11
Cooling flow input range (A) 1.51-9.13
EER 4.64-2.82

[Hot water] Ambient temp. (DB/WB): 20 °C/15 °C, water temp. 15-55°C
Heating output (kW) 9.33
Input power (kW) 2.14
Heating current input range (A) 9.8
COP 4.35

General data
Input voltage (V), frequency (Hz) 220-240 (L+N+PE), 50 380-415 (3L+N+PE), 50
Max. input power (kW) 4
Max. operating current (A) 18.3
Max. outlet water temp. (°C) 75
Compressor (brand, number) HIGHLY, 1
Refrigerant R290
Heat exchanger on the water side, plate heat exchanger
Heat exchanger on the air side finned heat exchanger
4-way valve integrated
Flow switch integrated
Fan motor type DC motor
High pressure switch Yes
Low pressure switch Yes
Water pipe connection (inch) G1 1/4"
Water volume flow (m³/h) 1.5
Water pressure drop (kPa) 37
Sound pressure level at 1 m (dB(A)) 38-44
Sound power level at 1 m (dB(A)) 53–59
ErP class (35 °C) A+++
ErP class (55 °C) A++
Operating range (°C) -25-43
Circulation pump (brand) SHINHOO
Expansion tank (l) 2
Blower motor type DC
Number of fans 1
Display 4-inch touch color display
WiFi functionality YES
Protection class IPX4
Protection class I

Abmessungen

Dimensions (W×D×H)
1263mm x 440mm x 875mm
Weight 115kg

Lieferumfang

1. 1x PowerHeat air-water heat pump 9/20 kW
2. 1x Wired Controller + Operation Manual
3. 4x temperature sensor
4. 4x rubber cushions
5. Installation & User Guide

Lieferung & Rückgabe

Shipping via DHL package (transit time 1-3 days)
14 day return policy

Produktinformationen gemäß GPSR

Verantwortlicher Hersteller in der EU:

ECOFLOW EUROPE S.R.O.

Doubravice 110

53353 Pardubice

Czech Republic

support.eu@ecoflow.com

Verantwortliche Person:

Serviceleistungen:

30 Tage Rückgabe: Kostenloser Rückversand

Sichere Zahlung: SSL-verschlüsselt

2 Jahre Garantie: Herstellergarantie

Kostenloser Versand: Ab 50€ Bestellwert

ECOFLOW

The EcoFlow PowerHeat air-water heat pump offers an efficient and environmentally friendly solution for heating support and helps to sustainably reduce energy costs. In combination with the EcoFlow PowerOcean series, a large part of the energy requirement can be covered by solar power and independence from the power grid can be increased.

Efficient use of ambient air to generate heat
Flexible integration into existing or new systems
Intelligent control via the EcoFlow app
Environmentally friendly R290 refrigerant with high efficiency (ErP A+++)
