ECOFLOW EUROPE S.R.O. EcoFlow PowerOcean Hybrid - inverter 8kW - control - picture 1
EcoFlow PowerOcean hybrid inverter 8kW
EcoFlow PowerOcean hybrid inverter 8kW
ECOFLOW EUROPE S.R.O. EcoFlow PowerOcean Hybrid - inverter 8kW - control - picture 2
ECOFLOW EUROPE S.R.O. EcoFlow PowerOcean Hybrid - inverter 8kW - control - picture 3
ECOFLOW EUROPE S.R.O. EcoFlow PowerOcean Hybrid - inverter 8kW - control - picture 4
ECOFLOW EUROPE S.R.O. EcoFlow PowerOcean Hybrid - inverter 8kW - control - picture 5
Sold Out

EcoFlow PowerOcean hybrid inverter 8kW

€1.689,00
Tax included.Shipping calculated at checkout.
Out of stock

Artikelnummer: 901015-V-01

Variantenauswahl:

Tax rate
Tax rate: 0% VAT (Offer in accordance with Section 12 Paragraph 3 UstG)

Estimated Shipping Widget will be displayed here!

Pickup currently unavailable at Zentrale Pfedelbach

Highlights:

Weitere Informationen →

The 3-phase hybrid inverter with 10 kW emergency power supply

The EcoFlow PowerOcean hybrid inverter enables highly efficient use and storage of solar energy to make your home independent of electricity. The 3-phase inverter is integrated with a backup module and offers an output power of up to 10 kW to power almost all important devices in the event of a grid failure.
3-Phase - Support your 3-phase devices during a power outage.

10 kW output power - Up to 10 kW output power to power all your essentials
Secure household appliances at once, including washing machines, dishwashers, ovens, etc.

ByPass mode - In the event of a fault, the inverter switches to ByPass mode to ensure the supply of grid power.

With a heat pump with SG Ready control input, PowerOcean can distribute excess solar power for heating to maximize your home's energy independence.

Update at any time without interruptions - Thanks to OTA technology, updates can be installed at any time without interrupting the power supply

Easier and faster installation
Wire-free battery installation.
Ultra-fast commissioning process in 3 steps.
Remote controlled OTA at any time.

Compact and modern design
Robust and reliable matte metal housing.
180 mm ultra-thin, compact dimensions to be inconspicuous in the basement
or the garage to fit and save more space for other equipment.

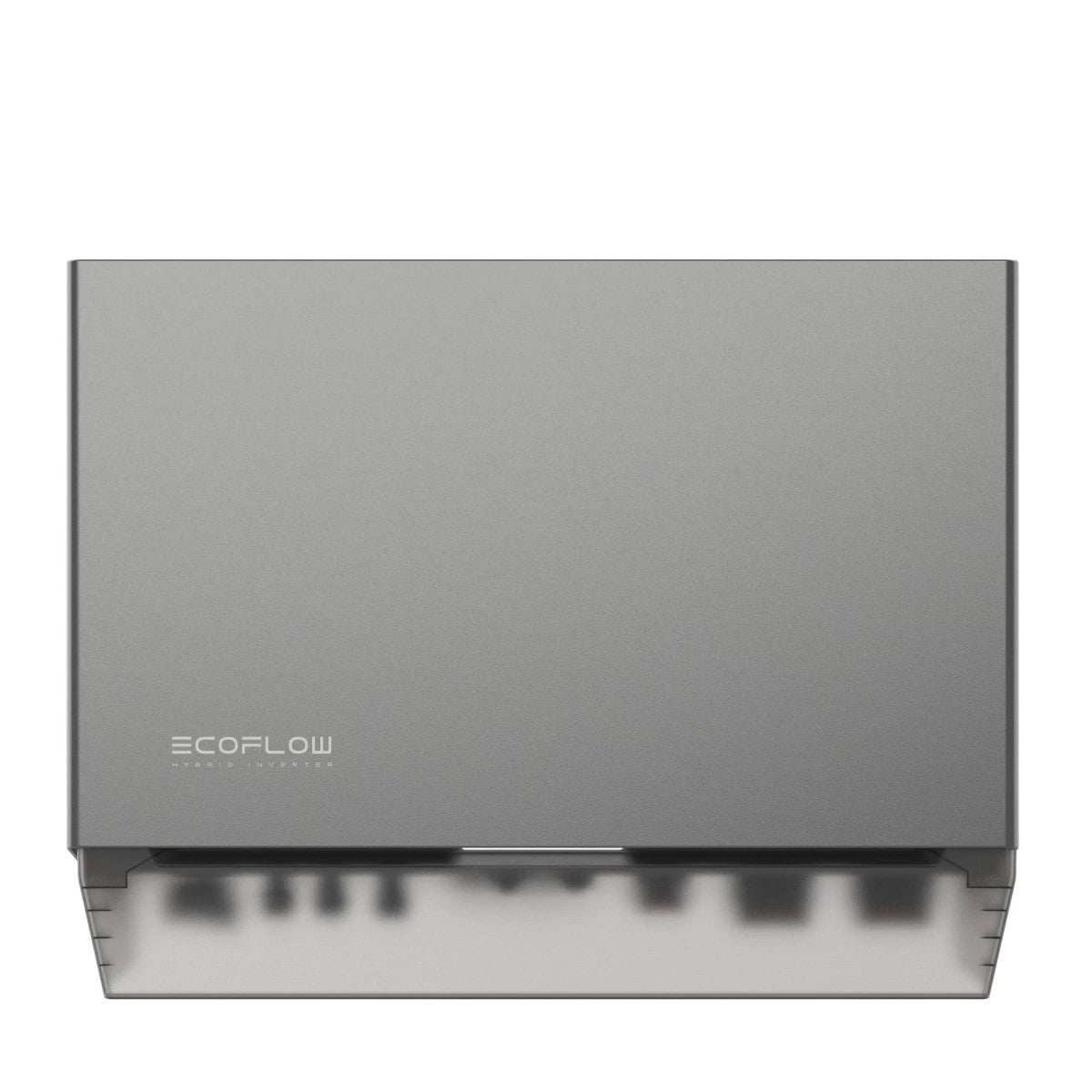

Flaps on the inverter and junction box for hiding
the cable.

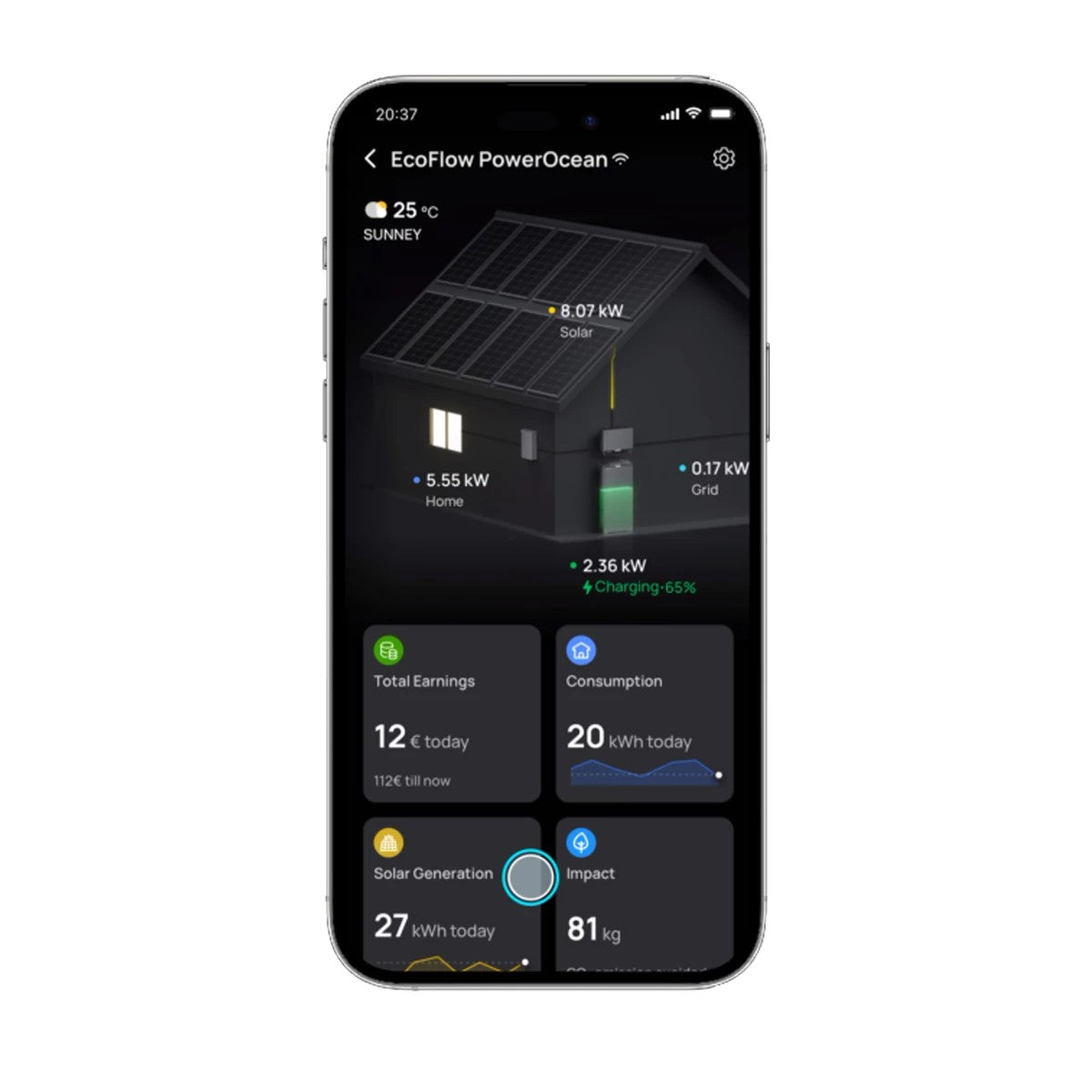

For users: EcoFlow app and web portal
Intuitive power flow monitoring.
Personalize with intuitive widgets.
Say goodbye to high energy bills with self-sufficiency mode.
Always prepared for network failures.

For installers: EcoFlow app and web portal
Ultra-fast commissioning process in 3 steps.
Comprehensive map view of authorized systems.
Easy troubleshooting.
Prioritize error codes according to emergency level.
Know error code in detail.

Produktinformationen:

Technische Details

DC input (PV)
Max. PV input power (W) 10,000
Maximum input voltage (V) 160-1 000
MPPT operating voltage range (V) 200-850
Switch-on voltage (V) 160
Nominal input voltage (V) 600
Maximum input current per MPPT (A) 16
Maximum Short Circuit Current per MPPT (A) 24
Number of strings per MPPT 1
Number of MPPTs 2
Overvoltage category II

DC input (battery)
Maximum charging power (W) 8,000
Maximum discharge power (W) 8,000
Maximum continuous charging current (A) 12.5
Maximum continuous discharge current (A) 12.5
Rated voltage (V) 800
Maximum battery capacity (kWh) 45.9

AC input
Mains connection 3L+N+PE
Overvoltage category III
Nominal apparent power from the supply network (VA) 16,000
Maximum apparent power from the supply network (VA) 16,000
Rated input voltage (V) 230 /400, 3L+N+PE
Maximum AC current from the power grid (A) 23.1
Rated frequency (Hz) 50/60

AC output (grid-connected)
Mains connection 3L+N+PE
Overvoltage category III
Nominal apparent power to the power supply network (VA) 8,000
Maximum apparent power to the power supply network (VA) 8,000
Rated output voltage (V) 230/400, 3L+N+PE
Rated frequency (Hz) 50/60
Maximum AC power output to the public grid (A) 11.5
Rated output current (A) 11.5
Total harmonic distortion of the current (at rated power) <3%
Power factor -0.8...1...+0.8

AC output (fuse)
Nominal apparent power (VA) 8,000
Maximum apparent power (VA) 9,600 to 1 second
Nominal output voltage (V) 230/400, 3L+N+PE
Rated frequency (Hz) 50/60
Rated output current (A) 11.5
Maximum output current (A) 13.9 to 1 second
Total harmonic distortion of voltage
(at linear load & rated power) <3%

Protection
Residual current monitoring integrated
Detection of PV insulation resistance Integrated
Integrated protection against islanding
PV reverse polarity protection integrated
AC overcurrent protection integrated
Fuse load short circuit protection integrated
AC surge protection integrated
DC switch integrated
Remote shutdown integrated

Efficiency
Maximum efficiency 97.6%
Maximum MPPT efficiency 99.9%

General information
Topology Not isolated
Operating temperature range (°C) -20 to 50
Storage temperature (°C) -30 to 60
Humidity during operation 0% - 100% (condensing)
Noise emission (dB) <35 outdoor area

Abmessungen

588 mm × 175 mm × 380 mm (±1) (W x H x D with cover)
588 mm × 175 mm × 455 mm (±1) (W x H x D without cover)
Weight approx. 29.6 kg

Lieferumfang

1. 1x EcoFlow PowerOcean hybrid microinverter 6kW
2. 1x user manual

Lieferung & Rückgabe

Shipping via DHL package (transit time 1-3 days)
14 day return policy

Produktinformationen gemäß GPSR
Verantwortlicher Hersteller in der EU:

ECOFLOW EUROPE S.R.O.

Doubravice 110

53353 Pardubice

Czech Republic

support.eu@ecoflow.com

Verantwortliche Person:

Serviceleistungen:

<strong>30 Tage Rückgabe: </strong>Kostenloser Rückversand

30 Tage Rückgabe: Kostenloser Rückversand

<strong>Sichere Zahlung: </strong>SSL-verschlüsselt

Sichere Zahlung: SSL-verschlüsselt

<strong>2 Jahre Garantie: </strong>Herstellergarantie

2 Jahre Garantie: Herstellergarantie

<strong>Kostenloser Versand: </strong>Ab 50€ Bestellwert

Kostenloser Versand: Ab 50€ Bestellwert
EcoFlow PowerOcean hybrid inverter 8kW

ECOFLOW

The EcoFlow PowerOcean hybrid inverter is a powerful 3-phase inverter with integrated backup power that enables efficient use and storage of solar energy. It ensures a reliable, stable energy supply and increases independence from the power grid.

  • 8 kW output power to power important household appliances
  • 3-phase support for modern electrical installations
  • Integrated bypass circuit for stable power supply
  • Non-disruptive updates during operation
