Mechanical data
Dimensions [mm] 1722 x 1041 x 35
Weight [kg] 24.4
Front cover Thermally toughened solar glass, 2.0 mm, with anti-reflection coating Back cover solar glass, 2.0 mm
Rahmen Schwarz eloxiertes Aluminium
Solar cell type 120 half cells, mono n-Si, HJT with SWCTTM bifacial cell technology

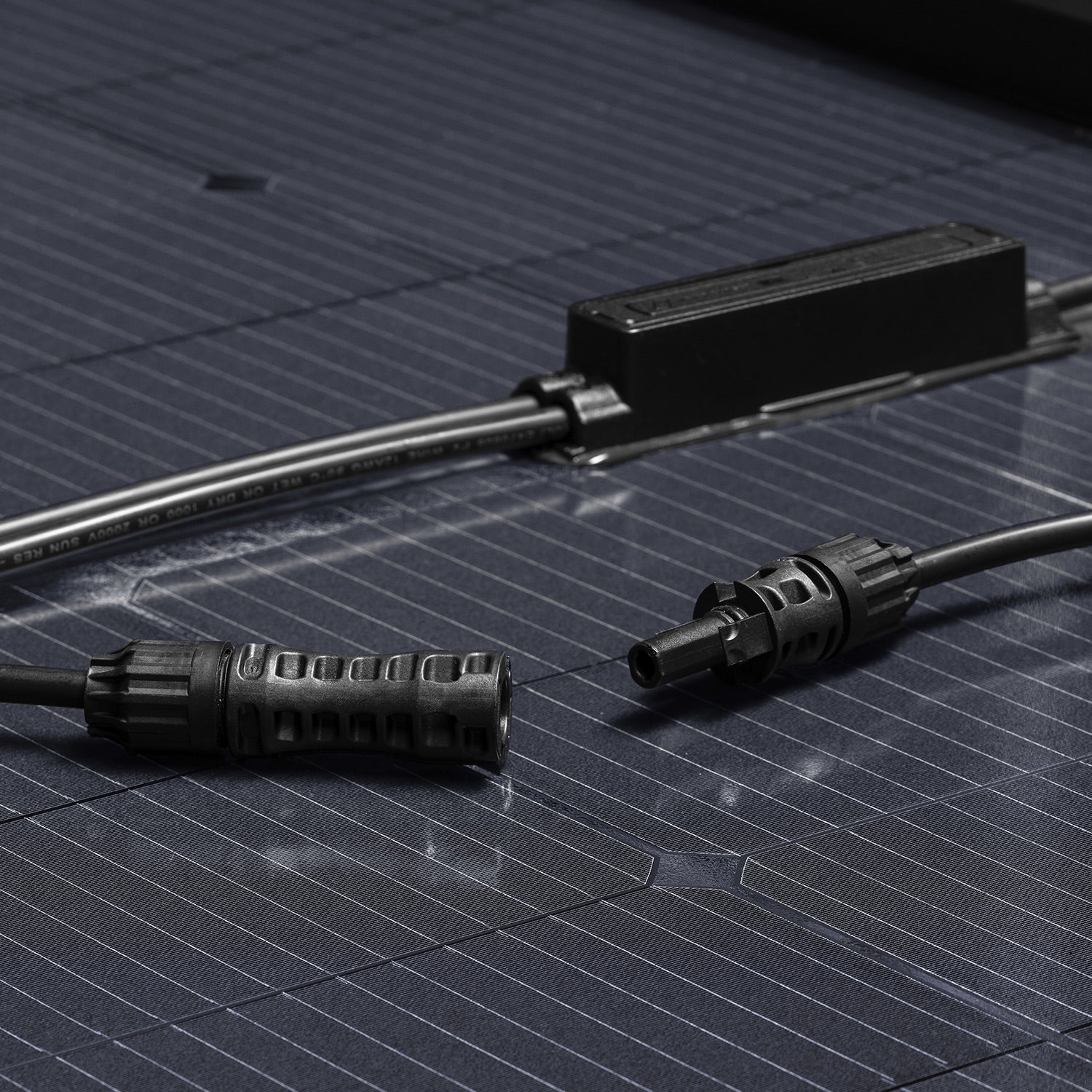

Junction boxes 3 diodes, IP68 according to IEC 62790
Cable PV cable 4 mm², 1.2 m long according to EN 50618
Plug 1: n.a. ; 2: MC4-Evo2; 3: UKT Energy PV-CO02; 4: TE Connectivity PV4-S1 according to IEC 62852, IP68 after connection

Electrical data 1*

Performance class 385
Efficiency η (%)
STC 2* 21.5

Power* Pmax (W)
NMOT 3* 292
STC 385
BiFi135 (BNPI)4* 429
BiFi300 (BSI)5* 476
Bifaciality factor [%] φPmax 90 ± 5

Short-circuit current Isc (A)
NMOT 8.4
STC 10.4
BiFi135 (BNPI) 11.6
BiFi300 (BSI) 12.9
Bifaciality factor [%] φIsc 90.7 ± 5

Open circuit voltage Voc (V)
NMOT 42.4
STC 44.7
BiFi135 (BNPI) 44.7
BiFi300 (BSI) 44.8
Bifaciality factor [%] φVoc 99.7 ± 5

Current Impp (A)
NMOT 7.9
STC 10.0

Spannung Vmpp (V)
NMOT 36.9
STC 38.7

1* Measurement according to IEC 60904-3, measurement tolerance: ±3%, monofacial measurement with back cover
2* STC: Irradiance 1,000 W/m², module temperature 25 °C, spectrum AM1.5G
3* NMOT: Module nominal operating temperature with irradiation 800 W/m², spectrum AM1.5G, ambient temperature 20 °C
4* According to TÜV 2 PfG 2645/11.17, with rear irradiation of 135 W/m²
5* Determined according to IEC 61215:2021

Temperature coefficients (The temperature coefficients mentioned are linear values)
Temperature coefficient ISC α [%/K] +0.033
Temperaturkoeffizient VOC β [%/K] -0,234
Temperature coefficient PMPP γ [%/K] -0.259
Module nominal operating temperature NMOT [°C] 43±2

Design features system design
Max. system voltage [V] 1500
Reverse current rating (OCPR) [A] 25
Max. test load +/- (safety factor for test load = 1.5) [Pa] 6000/4000
Max. design load +/- [Pa] 4000/2666
Schutzklasse II
Fire protection class (EN 13501-1 / EN 13501-5) B/BROOF (t1)
Operating temperature [°C]-40 to +85

Certification WEEE Reg. No. DE 18170271
IEC 61215:2016, IEC 61730:2016, PID (IEC 62804), salt spray resistance (IEC 61701)
Certifications pending: Ammonia resistance (IEC 62716), dust and sand (IEC 60068)

Note: All data and specifications are preliminary and subject to change at any time.

Dimensions [mm] 1722 x 1041 x 35
Weight [kg] 24.4

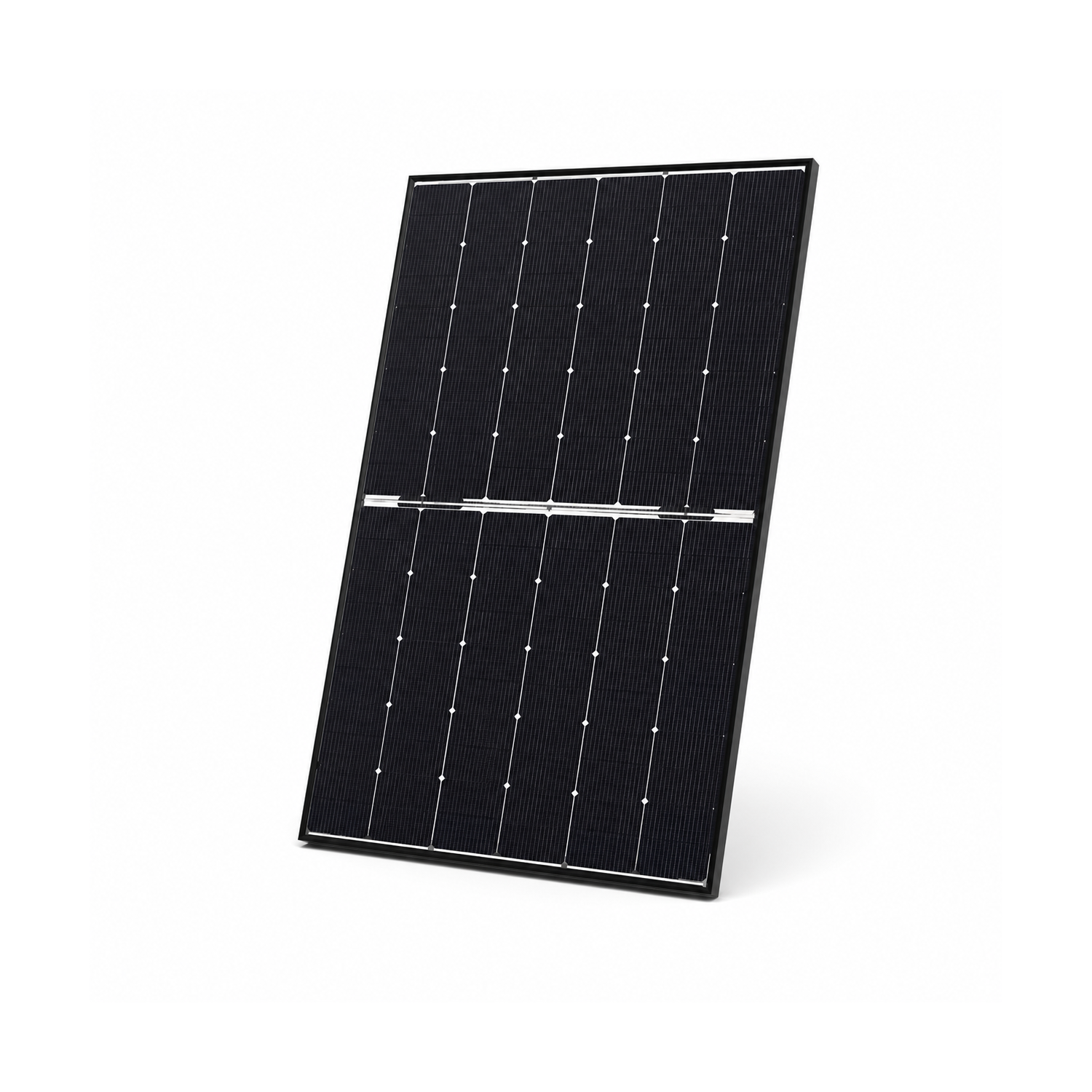

Meyer Burger - Mono n-Si HJT 385 Wp Glass Glass 35mm Half-Cut 120 cells
